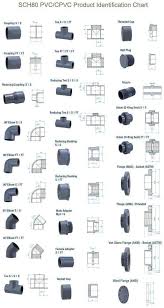

Types 0f pvc pipe adapters caps. Pvc pipe sizes are different than the size the pipe is called. You ll see this table shows the five most common pipe dimensions.

how do i find my vpn connection name how do i connect vpn on my ipad get nordvpn on firestick how do i do a vpn connection how do i enable vpn on kaspersky how do i download vpn how do i change my vpn password on windows 10 hotspot shield vpn wifi proxy

Pin On Tools Shop

Pin On Remodel

Pin On Dimensions

Pin On Plumbing

Pin On Ham Radio

Pin On Pvc Projects

5 way pvc cross fitting.

Pvc pipe sizes. Pvc external flat cap. Plus 0 2 mm tolerance is allowed on sizes from 16 through 63 plus 0 3 mm on sizes 75 through 125 plus 0 4 mm on sizes 140 through 200 plus 0 5 mm on sizes 225 and 250 and plus 0 6 mm on sizes 280 and 315. Not sure what each of these are.

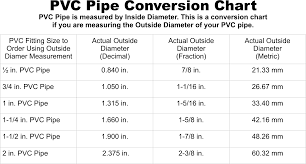

For correct pipe and fittings connections always use pipe and fittings with the same nominal pipe size. Pipe size decimal od fraction od metric od average id min. This pvc pipe size chart is accurate for all pvc pipe manufacturers as the nominal size is used across the industry.

The nominal size is in fact the minimum outside diameter. Pvc pipe slip tee. Sdr sizes are a more modern series.

Pvc pipe sizes dimensions guide charts pvc pipe fittings. Pvc pipe under 14 does not match up exactly with its nominal size see nominal pipe size and o d. Effective length of pvc pipes with socketed ends equals the overall length of the pvc pipe plus the insertion depth into the socket of the joining pvc pipes.

Schedule 40 pvc pipe size table for schedule 40 pipe only. 0 622 0 109 3 4 1 050 1 1 16 26 67 mm. 1 049 0 133 1 1 4 1 660 1 5 8 42 16 mm.

Cts sizes were made to match existing copper plumbing copper tube sizes. 3 way pvc corner fitting. Fittings follow this same pattern a 1 fitting has a 1 315 inch opening to accept a 1 inch pipe which actually measures 1 315 inches in diameter.
